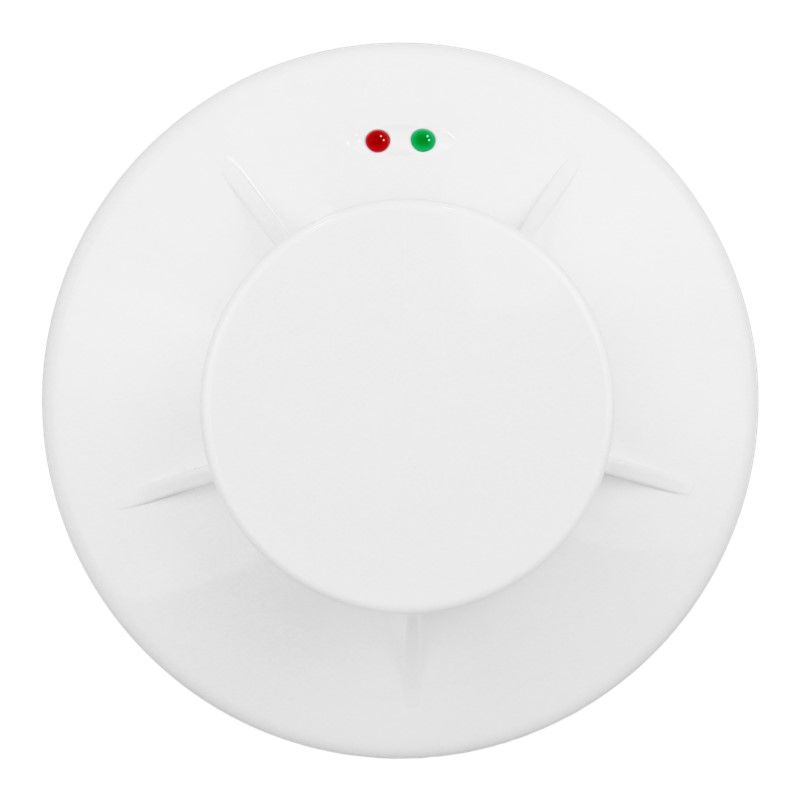

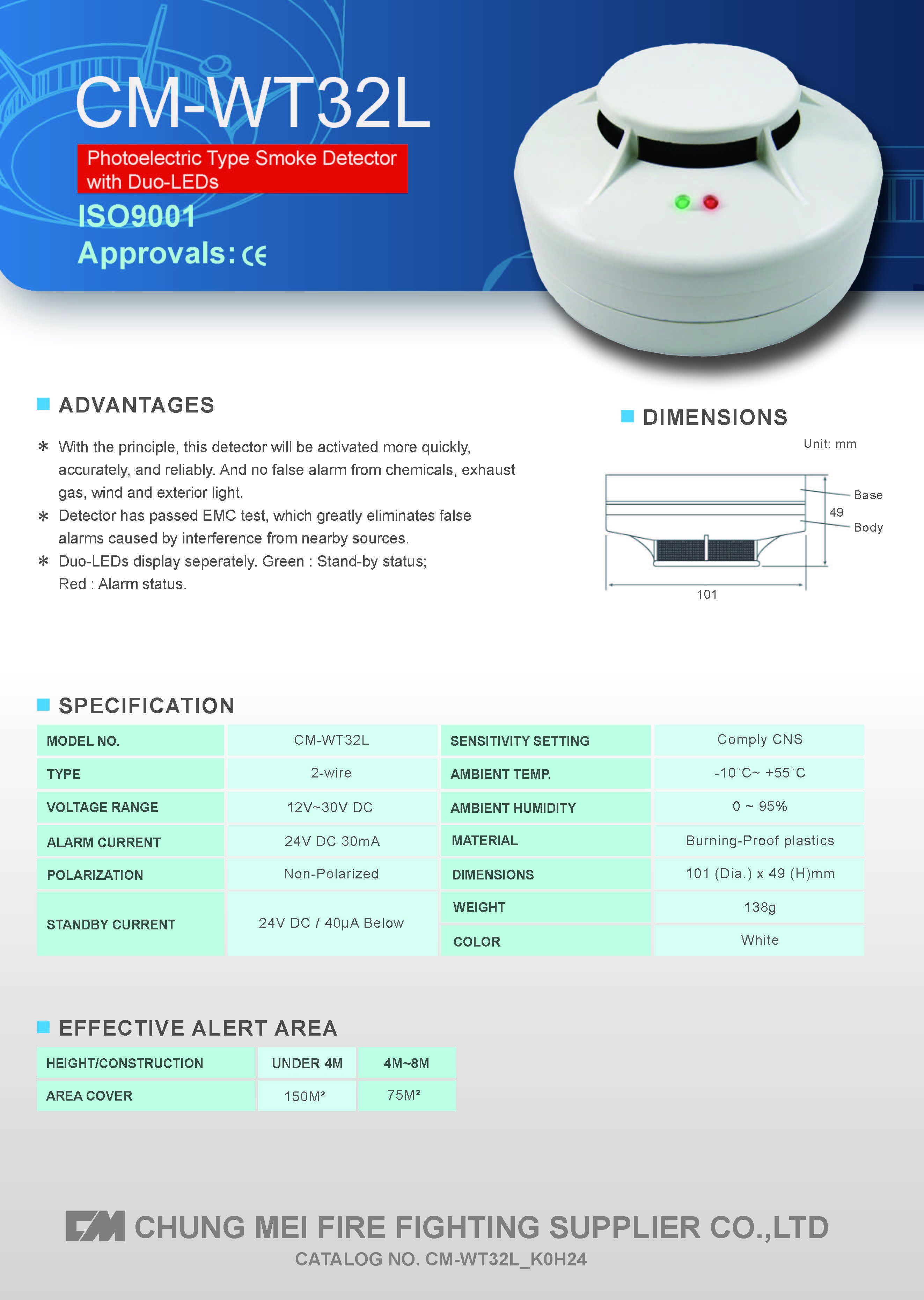

CM-WT32L Photoelectric Type Smoke Detector

  • Product Feature
  • Product Specification
  • Certificate
  • Download

Photoelectric Type Smoke Detector

  • With the photoelectric sensing principle, this kind of detectors is activated more quickly, accurately and reliably, and there are no false alarm due to chemicals, exhaust gas, wind and exterior light

  • Detector has passed EMC test, which greatly eliminates false alarms caused by interference from nearby sources

  • Duo-LEDs display separately: Stand-by status: Green; Alarm status Red

  • SPECIFICATION
MODEL NO. CM-WT32L
TYPE  2-wire
VOLTAGE RANGE  12V ~ 30V DC
ALARM CURRENT  24V DC 30mA
STANDBY CURRENT  24V DC / 25 μA Below
POLARIZATION  Non-polarized
WEIGHT  138g
SENSITIVITY SETTING Comply to EN54, CNS
AMBIENT TEMP.  -10℃ ~ +55℃
AMBIENT HUMIDITY  0 ~ 95%
MATERIAL  Burning-Proof Plastics
DIMENSIONS  101 (Dia.) × 49 (H) mm
COLOR White


  • EFFECTIVE ALERT AREA
HEIGHT/CONSTRUCTION UNDER 4M 4M ~ 8M
AREA COVER 150 M2 75 M2
