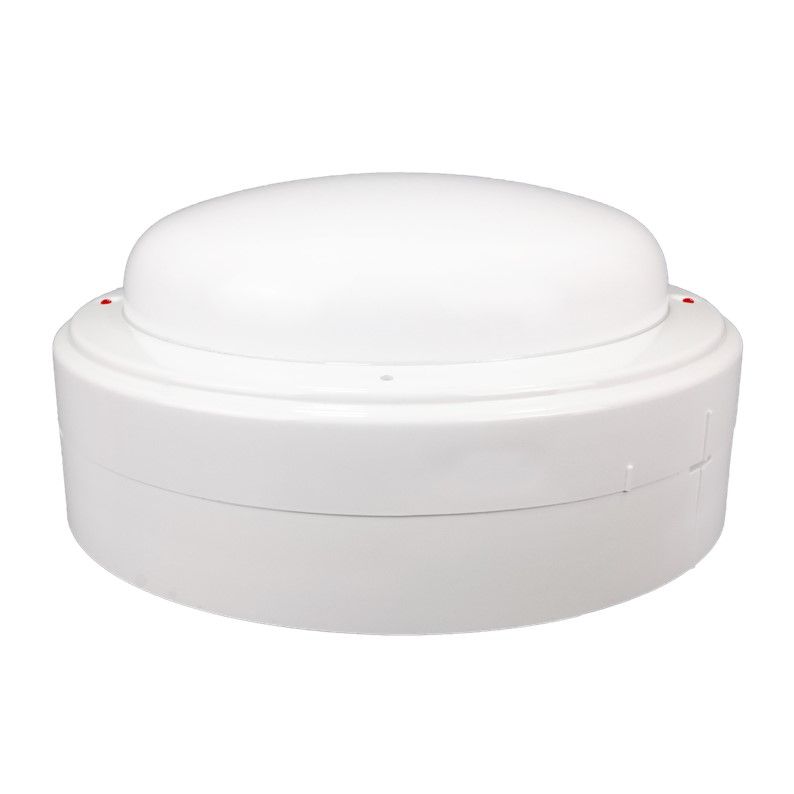

CM-WS14LR Rate of Rise Heat Detector

Back to List
  • Product Feature
  • Product Specification
  • Certificate
  • Download
Rate of Rise Heat Detector

  • Dual LEDs for 360-degree visibility

  • Mechanical operating principles ensure the long-term durability and the least malfunction

  • Self-restoring function ensures the elements repeatedly use

  • Electrical contacts with Sliver-palladium alloy to conduct electricity excellently

  • The exhaust valve of R.O.R Heat Detector part uses optical fiber glass capillary tube that's heat-resistant and moisture proof to avoid false alarms
  • SPECIFICATION
MODEL NO. CM-WS14L CM-WS14LR
TYPE  2-wire 3-wire
VOLTAGE RANGE  12V ～ 30V DC
ALARM CURRENT  24V DC 30mA
POLARIZATION  Non-polarized Polarized
WEIGHT  131g
SENSITIVITY SETTING Comply to CNS
AMBIENT TEMP.  -10℃ ～ +55℃
AMBIENT HUMIDITY  0 ～ 95%
MATERIAL  Burning-Proof Plastics
DIMENSIONS  102 (Dia.) × 47 (H) mm
COLOR White
REMARK Apply to base model No. CM-BSN3


  • EFFECTIVE ALERT AREA
HEIGHT/CONSTRUCTION UNDER 4M 4M ～ 8M
Fire-proof Building 70 M2 35 M2
Ordinary Building 40 M2 25 M2
