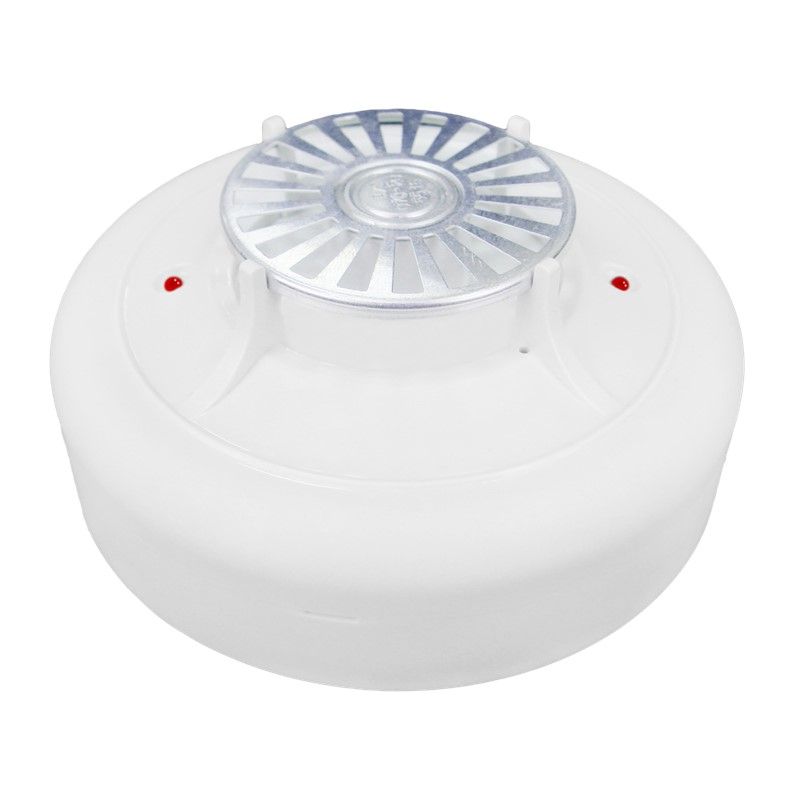

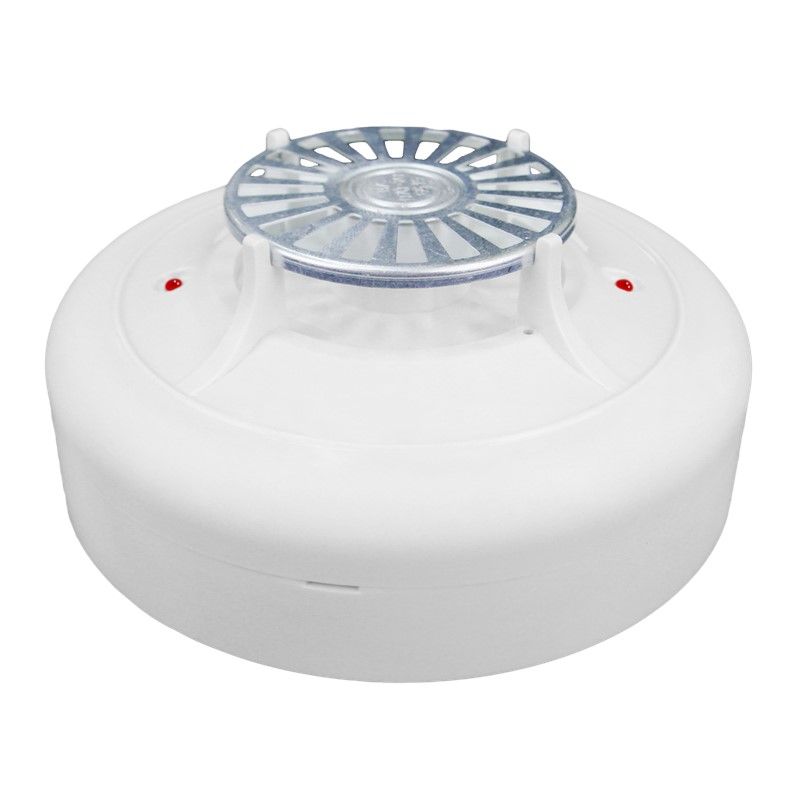

CM-WK24L Fixed Temperature Heat Detector

  • Product Feature
  • Product Specification
  • Certificate
  • Download
Fixed Temperature Heat Detector

  • Dual LEDs for 360-degree visibility
  • Stabilized performance, long term durability and least-malfunction are ensured by employing a UL approved sensor
  • The sensitive part is enclosed to prevent from being moistened and contaminated
  • Self-restoring function ensures the element repeatedly use
  • SPECIFICATION
MODEL NO. CM-WK24L CM-WK24LR
TYPE  2-wire 3-wire
VOLTAGE RANGE  12V ~ 30V DC
ALARM CURRENT  24V DC 30mA
POLARIZATION  Non-polarized Polarized
WEIGHT  109g
SENSITIVITY SETTING Comply to EN54, CNS
AMBIENT TEMP.  -10℃ ~ +55℃
AMBIENT HUMIDITY  0 ~ 95%
MATERIAL  Burning-proof plastics
DIMENSIONS  102 (Dia.) × 43 (H) mm
COLOR White
REMARK Apply to base model No. CM-BSN3


  • EFFECTIVE ALERT AREA
HEIGHT/CONSTRUCTION UNDER 4M 4M ~ 8M
Fire-proof Building 60 M2 30 M2
Ordinary Building 30 M2 15 M2
