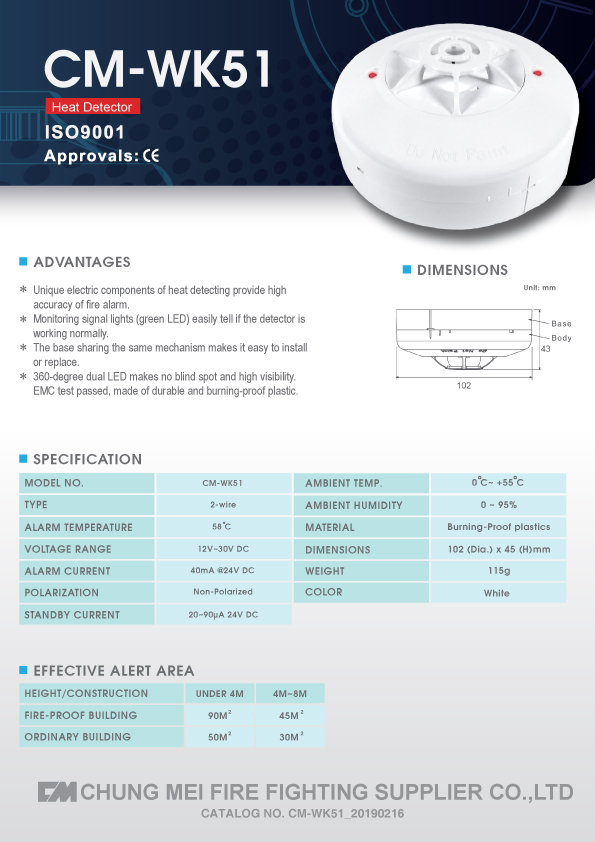

CM-WK51 Fixed Temperature Heat Detector

Back to List
  • Product Feature
  • Product Specification
  • Certificate
  • Download
Fixed Temperature Heat Detector

  • Unique electric components of detecting high accuracy of fire alarm

  • Monitioring signal lights (green LED) are easily to identify if the detector is working normally

  • The base sharing the same mechanism makes it easy to install or replace

  • 360-degree Dual LED makes no blind spot and high visibility

  • EMC test passed, made of durable and Burning-proof plastic
  • SPECIFICATION
MODEL NO. CM-WK51
TYPE  2-wire
VOLTAGE RANGE  12V ～ 30V DC
ALARM CURRENT  24V DC 40mA
THERMAL SETTING 58℃
STANDBY CURRENT  24V DC / 20~90μA
POLARIZATION  Non-polarized
WEIGHT  115g
SENSITIVITY SETTING Comply to CNS
AMBIENT TEMP.  0℃ ～ +55℃
AMBIENT HUMIDITY  0 ～ 95%
MATERIAL  Burning-proof plastics
DIMENSIONS  102 (Dia.) × 45 (H) mm
COLOR White


  • EFFECTIVE ALERT AREA
HEIGHT/CONSTRUCTION UNDER 4M 4M ～ 8M
Fire-proof Building 90 M2 45 M2
Ordinary Building 50 M2 30 M2
