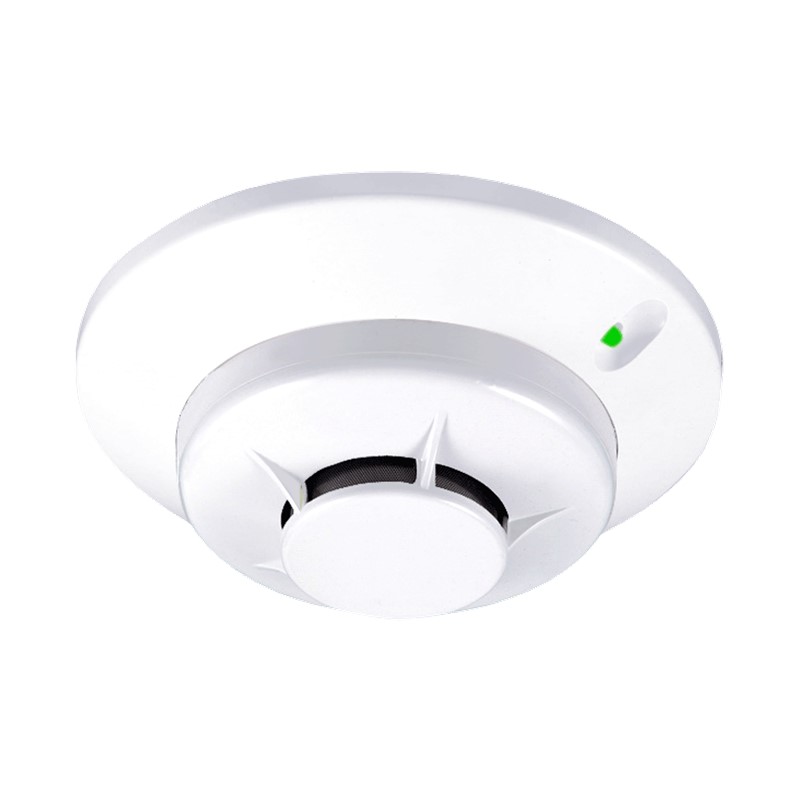

CM-RD-01/02/03/04 Addressable Detector

MODEL NO.	CM-RD-01	CM-RD-02	CM-RD-03	CM-RD-04
TYPE	Addressable Photoelectric Smoke Detector	Addressable Photoelectric Smoke Detector (Expandable)	Addressable Rate of Rise Heat Detector	Addressable Fixed Temperature Heat Detector
ALARMING TEMP.	-			70°C
POWER INPUT	16V DC ~ 30V DC
POWER CONSUMPTION	Static 480μA/24V DC Alarm 7.6mA/24V DC
STATUS INDICATION	Monitoring: Green LED flashing Alarm: RED LED flashing Broken circuit: Orange LED flashing
CONNECTION CAPABILITY	-	Detection loop max. output 0.5mA/24V DC	-	-
AMBIENT TEMPERATURE	0°C ~ 50°C			-10°C ~ 50°C
DIMENSION	150(W)×55(H) mm	150(W)×55(H) mm	150(W)×50(H) mm	150(W)×52(H) mm
MATERIAL	Fire-proof plastics
