CM-P1 Wall Mounting Type

  • Product Feature
  • Product Specification
  • Certificate
  • Download

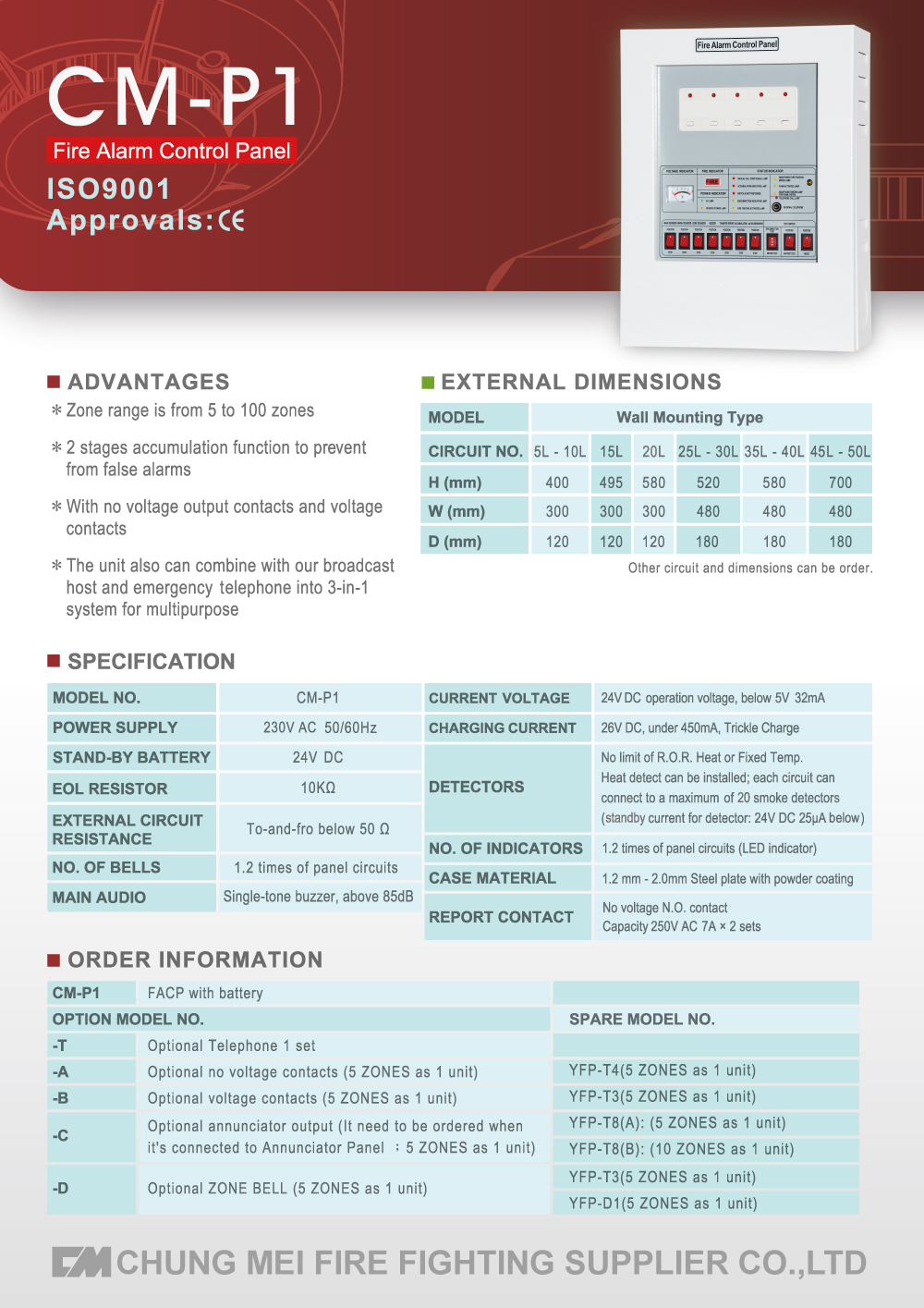

Wall Mounting Type Fire Alarm Control Panel

  • Zone range: 5 to 100 zones

  • 2 stages accumulation function to prevent false alarm from detectors

  • With no voltage output contacts and voltage contacts

  • The unit also can combine with CM broadcast host and emergency telephone into 3-in-1 system for multipurpose
  • SPECIFICATION
MODEL NO. CM-P1
POWER SUPPLY 230V AC 50/60 Hz
STANDBY BATTERY 24V DC / Lead-Acid (Non-Spillable) Battery
E.O.L RESISTOR 10 KΩ
EXTERNAL CIRCUIT RESISTANCE To-and -fro below 50 Ω
NO. OF BELLS 1.2 times of panel circuits
MAIN AUDIO Single-tone buzzer, above 85 dB
CURRENT VOLTAGE  24V DC operation voltage, below 5V 32mA
CHARGING CURRENT 26V DC, under 450mA, Trickle Charge
DETECTORS No limit of R.O.R or Fixed Temp. Heat Detector can be installed; Each circuit can connect to a maximum of 20 smoke detectors (standby current for detector: 24V DC 25 μA below).
NO. OF INDICATORS 1.2 times of panels circuits (LED indicator)
CASE MATERIAL 1.2mm~2.0mm Steel plate with powder coating
REPORT CONTACT No voltage N.O. contact
Capacity 250V AC 7A × 2 sets


  • ORDER INFORMATION
CM-P1 FACP with battery
OPTION MODEL NO. SPARE MODEL NO.
-T Optional Telephone 1 set
-A Optional no voltage contacts (5 zones as 1 unit) YFP-T4
(5 zones as 1 unit)
-B Optional voltage contacts (5 zones as 1 unit) YFP-T3
(5 zones as 1 unit)
-C Optional annunciator out put (It needs to be order when it's connected to Annunciator Panel; 5 zone as 1 unit) YFP-T8(A)
(5 zones as 1 unit)
YFP-T8(B)
(10 zones as 1 unit)
-D Optional ZONE BELL (5 zones as 1 unit) YFP-T3
(5 zones as 1 unit)
YFP-D1
(5 zones as 1 unit)
* Max. 100L

  • EXTERNAL DIMENSIONS
MODEL Wall Mounting Type
CIRCUIT NO. 5L - 10L 15L 20L 25L - 30L 35L - 40L 45L - 50L
H (mm) 400 495 580 520 580 700
W (mm) 300 300 300 480 480 480
D (mm) 120 120 120 180 180 180
