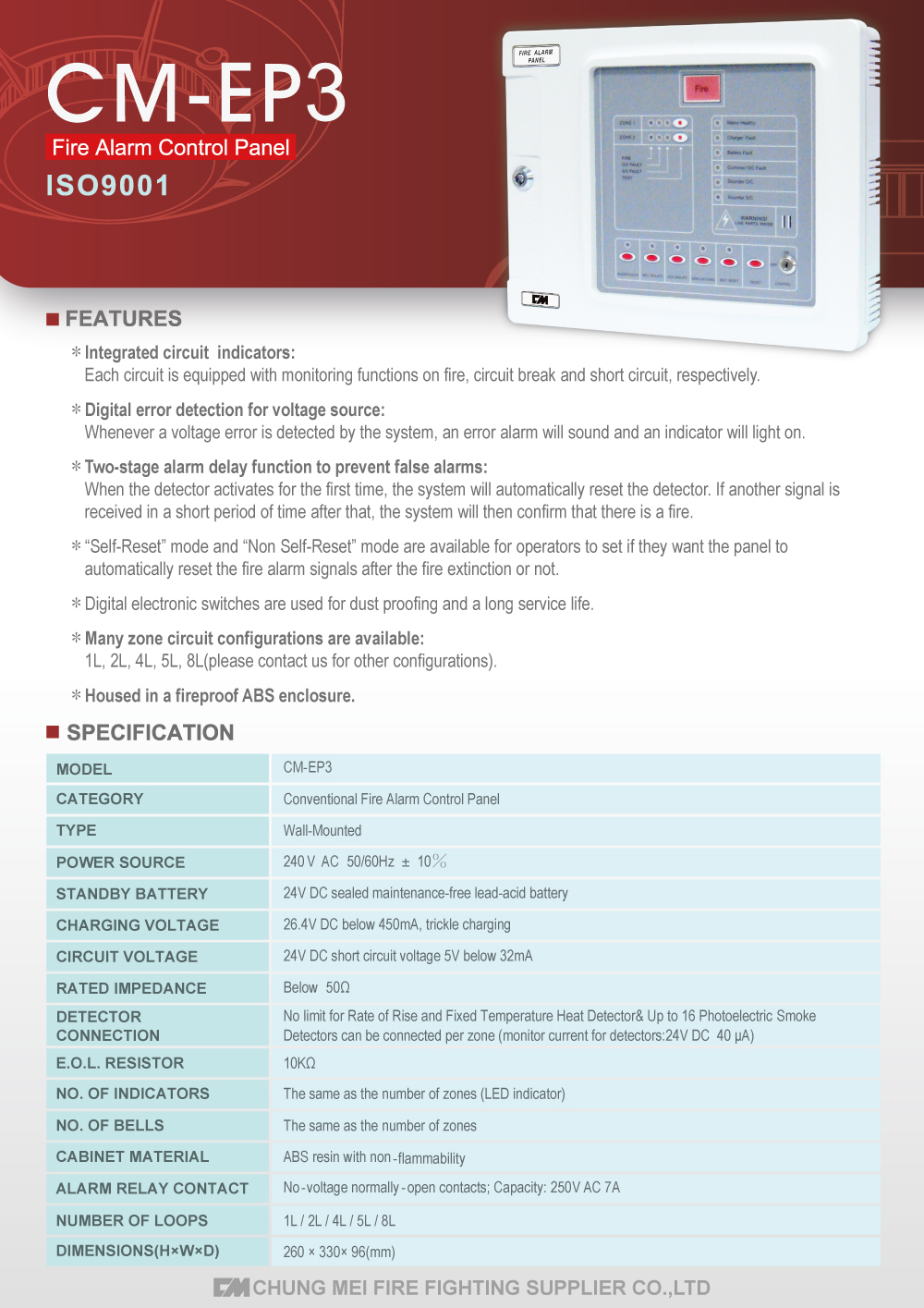

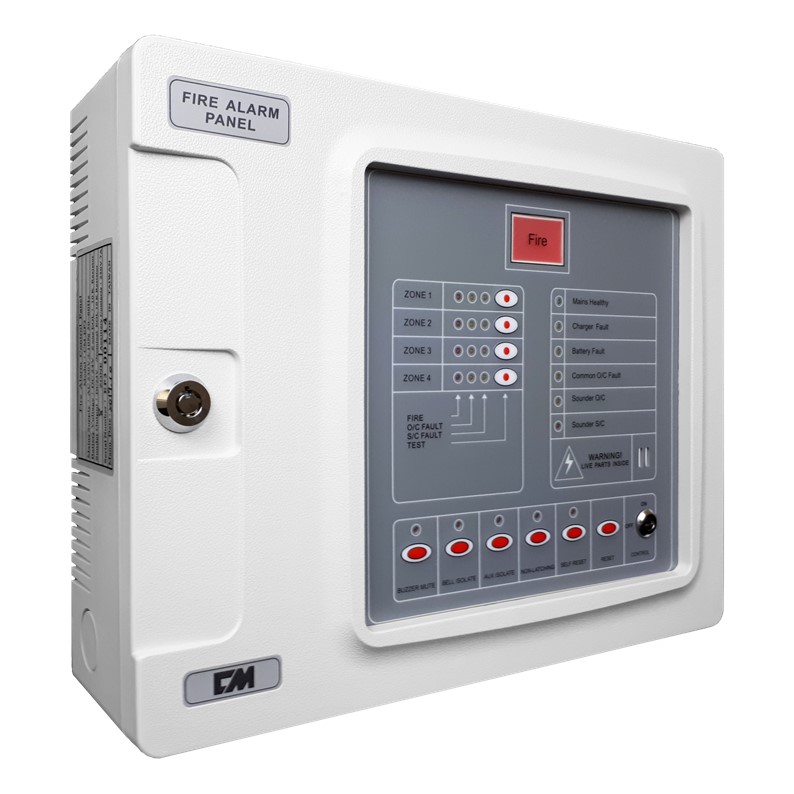

CM-EP3 Fire Alarm Control Panel

  • Product Feature
  • Product Specification
  • Download
  • Integrated circuit indicators: Each circuit is equipped with monitoring functions on fire, circuit break and short circuit, respectively

  • Digital error detection for voltage source: Whenever a voltage error is detected by the system, an error alarm will sound and an indicator will light on

  • Two-stage alarm delay function to prevent false alarms: When the detector activates for the first time, the system will automatically reset the detector. If another signal is received in a short period

  • “Self-Reset” mode and “Non Self-Reset” mode are available for operators to set if they want the automatically reset the fire alarm signals after the fire extinction or not

  • Digital electronic switches are used for dust proofing and a long service life

  • Many zone circuit configurations are available: 1L, 2L,4L,5L,8L

  • Housed in fireproof ABS enclosure
  • SPECIFICATION
MODEL NO. CM-EP3
POWER SOURCE 240V AC 50/60 Hz ± 10%
STANDBY BATTERY 24V DC
E.O.L RESISTOR 10 KΩ
EXTERNAL CIRCUIT  Below 50 Ω
NO. OF BELLS The same as the number of zones
CHARGING VOLTAGE 26V DC, under 450mA, Trickle Charging
CIRCUIT VOLTAGE  24V DC short circuit voltage 5V below 32mA
CHARGING CURRENT 26.4V DC, under 450mA, Trickle Charge
DETECTORS No limit for R.O.R Heat or Fixed Temp. Heat Detector & up to 20 Photoelectric Smoke Detectors (standby current for detector: 24V DC 40 μA below)
NO. OF INDICATORS The same as the number of zones (LED indicator)
CASE MATERIAL ABS resin with non-flammability
NO. OF LOOPS 1L/2L/4L/5L/8L
ALARM RELAY CONTACT No-voltage normally-open contacts; Capacity 250V AC 7A

DIMENSIONS
(H × W × D)

260 × 330 ×96 (mm)


  • ORDER INFORMATION
CM-EP3-1L FACP 01 zone with battery
CM-EP3-2L FACP 02 zone with battery
CM-EP3-4L FACP 04 zone with battery
CM-EP3-8L FACP 08 zone with battery
